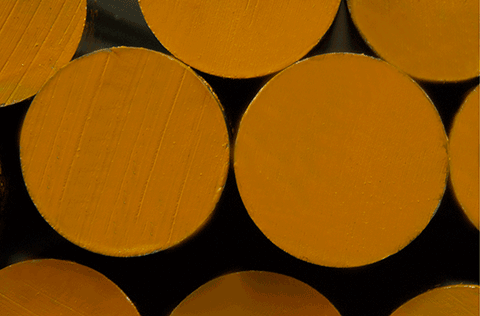

Free cutting cold drawn steel 11SMn30

EN 10277-3

Used in multiple applications with no important mechanical requirements.

Its most common applications are for screws, bolts, tips, nipples and washers.

	C	Mn	Si	P	S
Min.		0,90			0,27
Max.	0,14	1,30	0,05	0,11	0,33

Dimensions	Re (N/mm²)	Rm (N/mm²)	A (%)
Mm.	Min.	Min.	Max.	Min.
≥ 5	≤ 10	440	510	810	6
> 10	≤ 16	410	490	760	7
> 16	≤ 40	375	460	710	8
> 40	≤ 63	305	400	650	9
>63	≤ 100	245	360	630	9

EN	DIN	Nº Stand	UNE	STAS	AFNOR	BS	UNI	AISI/SAE	GOST
11SMn30	9SMn28	1.0715	F2111		S250	230M07	CF9S22	1213

Grade	Profile	Tolerance	Length, mm.	Bundle weight, kg min.	Chamfering
11SMn30		h9 – h10	3.000 – 4.000	1.000-2.000	9,5-65 mm: 1 end
